Series PG350 - DC motor with planetary gearbox

DC motor series PG350 with planetary gearbox

Torque: 1...12 kg-cm
speed: 8...990 rpm
Voltage: 12 a 24 V
Diameter: 35 mm

  • DC carbon-brush motor
  • It contains a filter to suppress electromagnetic interference
  • There is also a version with encoder
  • Planetary gearbox with metal gears (except first stage)
  • Only first stage is made of plastic for noise reduction purpose
  • Output shaft is supported by a ball bearing

Options: all metal gears, twin flat power cable...

Gear motor specifications

Ratio 5:1 14:1 19:1 27:1 51:1 71:1 100:1 139:1 189:1 264:1 516:1 721:1
12 VRated torque [kg-cm] 1.0 2.4 3.3 4.7 7.6 8 10 10 12 12 12 12
Rated speed [rpm] 950 359 257 183 97 71.5 52 39 29 21 11 8
24 VRated torque [kg-cm] 1.0 2.3 3.2 4.5 7.3 8 10 10 12 12 12 12
Rated speed [rpm] 990 375 268 192 101 74.5 54 40 29.5 22 11.5 8
Wieght [g] 328 362 362 362 394 394 394 394 420 420 420 420
Dimensions of DC motor with planetary gearbox - series PG350

Gearboxes specifications

  • Backlash, at no-load ≤ 2.5 °
  • Radial load ≤ 3.5 kg (10 mm from flange)
  • Shaft axial load ≤ 2.5 kg
  • Shaft press fit force max. ≤ 10 kg
  • Radial play of shaft ≤ 0.05 mm
  • Thrust play of shaft ≤ 0.3 mm
  • Operating temperature range -10...60 °C
  • Operating relative humidity 20...85 %
Ratio 5:1 14:1 19:1 27:1 51:1 71:1 100:1 139:1 189:1 264:1 516:1 721:1
Rated permissible torque [kg-cm] 2.0 4.0 4.0 6.0 8.0 8.0 10.0 10.0 12.0 12.0 12.0 12.0
Efficiency [%] 80 70 70 70 60 60 60 60 50 50 50 50
Length L [mm] 22.1 28.5 28.5 28.5 34.9 34.9 34.9 34.9 41.3 41.3 41.3 41.3

Motor data

Rated voltage
[V]
Rated torque
[g-cm]
Rated speed
[rpm]
Rated current
[mA]
No load speed
[rpm]
No load current
[mA]
Rated output
[W]
12 250 4930 ≤1600 6000 ≤250 12.8
24 240 5150 ≤750 6000 ≤130 12.7

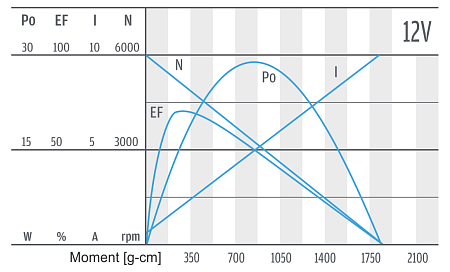

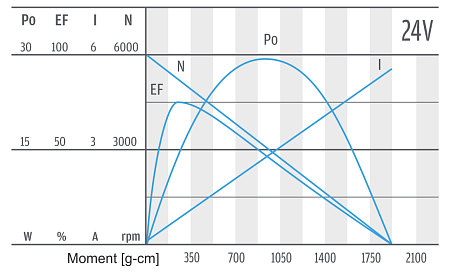

Series PG350 - motor characteristics

Encoder specifications

Wiring of connector for motor with encoder

  • Two channel hall effect encoder with 90° phase shift
  • Open collector output
  • 7 pulses per motor revolution (PPR) and senzor
  • Supply voltage 3.5 až 20 V
  • Length of rear cover (D) 13.5 mm
  • We offer a suitable connector for PCB
