Series PG160 - DC motor with planetary gearbox

DC motor series PG160 with planetary gearbox

Torque: 21...2400 g-cm
Speed: 1,9...2400 rpm
Voltage: 6, 9, 12, 24 V
Diameter: 16 mm

  • DC metal-brush motor
  • It contains a filter to suppress electromagnetic interference
  • There is also a version with encoder
  • Planetary gearbox with metal gears (except first stage)
  • Only first stage is made of plastic for noise reduction purpose
  • Sleeve bearings

Options: supply voltage 6 V or 9 V, all metal gears

Gear motor specifications

Ratio 4:1 14:1 19:1 29:1 62:1 72:1 84:1 104:1 128:1 157:1
12 VRated torque [g-cm] 21 60 82 120 220 260 300 380 460 550
Rated speed [rpm] 1330 430 315 205 100 85 73 59 48 39
24 VRated torque [g-cm] 31 85 120 180 330 380 450 560 690 850
Rated speed [rpm] 2400 760 555 365 170 150 130 105 85 69
Wieght [g] 37 41 41 41 45 45 45 45 45 45
Ratio 231:1 316:1 370:1 455:1 561:1 690:1 1014:1 1621:1 1996:1 3027:1
12 VRated torque [g-cm] 700 950 1100 1350 1700 2000 2400 2400 2400 2400
Rated speed [rpm] 26 19 16 13.5 11.0 8.9 6.0 3.8 3.2 2.3
24 VRated torque [g-cm] 1000 1400 1600 2000 2000 2000 2400 2400 2400 2400
Rated speed [rpm] 47 34 29 24 19.5 15.9 11 7.2 6.1 4.1
Wieght [g] 49 49 49 49 49 49 53 53 53 53
Dimensions of DC motor with planetary gearbox - series PG160

Gearboxes specifications

  • Backlash, at no-load ≤ 3 °
  • Radial load ≤ 0.5 kg (10 mm from flange)
  • Shaft axial load ≤ 0.5 kg
  • Shaft press fit force max. ≤ 1.5 kg
  • Radial play of shaft ≤ 0.08 mm
  • Thrust play of shaft ≤ 0.2 mm
  • Operating temperature range -10...60 °C
  • Operating relative humidity 20...85 %
Ratio 4:1 14, 19, 29:1 62, 72, 84, 104,
128, 157:1
231, 316, 370,
455, 561, 690:1
1014, 1621,
1996, 3027:1
Rated permissible torque [kg-cm] 0.8 1.2 1.6 2.0 2.4
Efficiency [%] 80 70 60 50 40
Length L [mm] 15.05 18.70 22.35 26 29.65

Motor data

Rated voltage
[V]
Rated torque
[g-cm]
Rated speed
[rpm]
Rated current
[mA]
No load speed
[rpm]
No load current
[mA]
Rated output
[W]
6 7.4 6550 ≤160 8000 ≤65 0.498
9 7.0 6500 ≤110 8000 ≤50 0.473
12 6.1 6200 ≤85 8000 ≤50 0.394
24 9.0 11000 ≤90 13500 ≤50 1.026

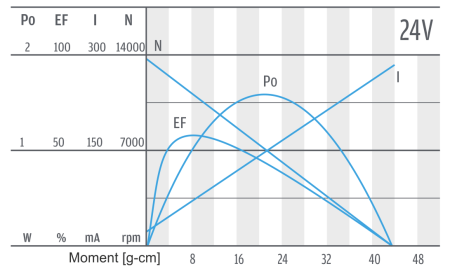

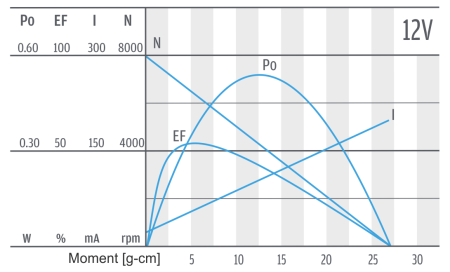

Series PG160 - motor characteristics
