You are here: Main page > Linear actuators > Series ID10 - ACME
Linear actuator series ID10 - Ball screw
Stroke: 102...610 mm
Load: 2500...7000 N
Speed: 7.4...47.2 mm/s
Voltage: 12 a 24 V
- Technical parameters
- Pricelist
- Linear actuator with DC motor
- Ball screw
- Spure gearbox
- Preset limit switches
- Metal gears
- Setting movement direction by reversing voltage polarity
- Protection level IP65
Options: stroke length, cable length, input voltage 36 or 48 V, hole diameter in the rod...

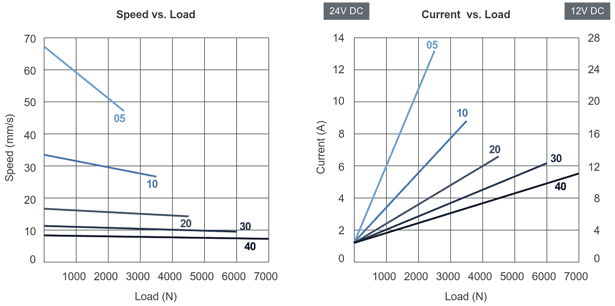

Actuator specifications
Ratio | 5:1 | 10:1 | 20:1 | 30:1 | 40:1 | |||||
---|---|---|---|---|---|---|---|---|---|---|
Maximal load | 2500 N | 3500 N | 4500 N | 6000 N | 7000 N | |||||
Speed at max. load | 47,2 mm/s | 26,7 mm/s | 14,3 mm/s | 9,8 mm/s | 7,4 mm/s | |||||
Static load | 13600 N | 13600 N | 13600 N | 13600 N | 13600 N | |||||
Voltage | 12 V | 24 V | 12 V | 24 V | 12 V | 24 V | 12 V | 24 V | 12 V | 24 V |
Current at rated load | 26,4 A | 13,2 A | 17,6 A | 8,8 A | 13,2 A | 6,6 A | 12,1 A | 6,1 A | 11,0 A | 5,5 A |
Operating conditions
- Duty cycle: 25 % (2 min. continuous operation in 8 min.)
- Operating temperature: -25...+65 °C
Dimensions
Stroke S [mm] | 102 | 153 | 203 | 254 | 305 | 457 | 610 |
---|---|---|---|---|---|---|---|
Retracted length A [mm] | 399 | 450 | 501 | 552 | 680 | 832 | 985 |
- Stroke tolerance ±3.0 mm
- Cable length 250 mm
