PG130-3-1024-E

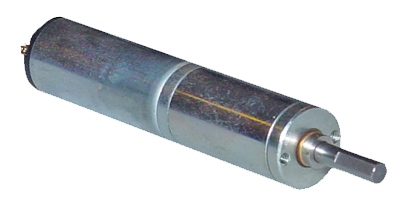

DC motor series PG130 with planetary gearbox

Voltage: 3 V
Ratio: 1024:1
Speed: 10 rpm
Torque: 2 kg-cm
Encoder: yes
Gearbox: planetary
Motor: DC brush
Gearbox length (L): 23.4 mm

Series PG130 - DC motor with planetary gearbox
Out of stock
Price and delivery date on request
102,85 € with VAT
85,00 € without VAT
pcs
Detailed technical data Other types from the same series

Drawings

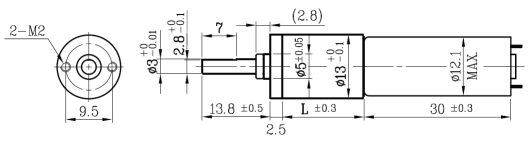

Dimensions of DC motor with planetary gearbox - series PG
